Heavy Transporter Robot
TRV MEGA
TRV MEGA

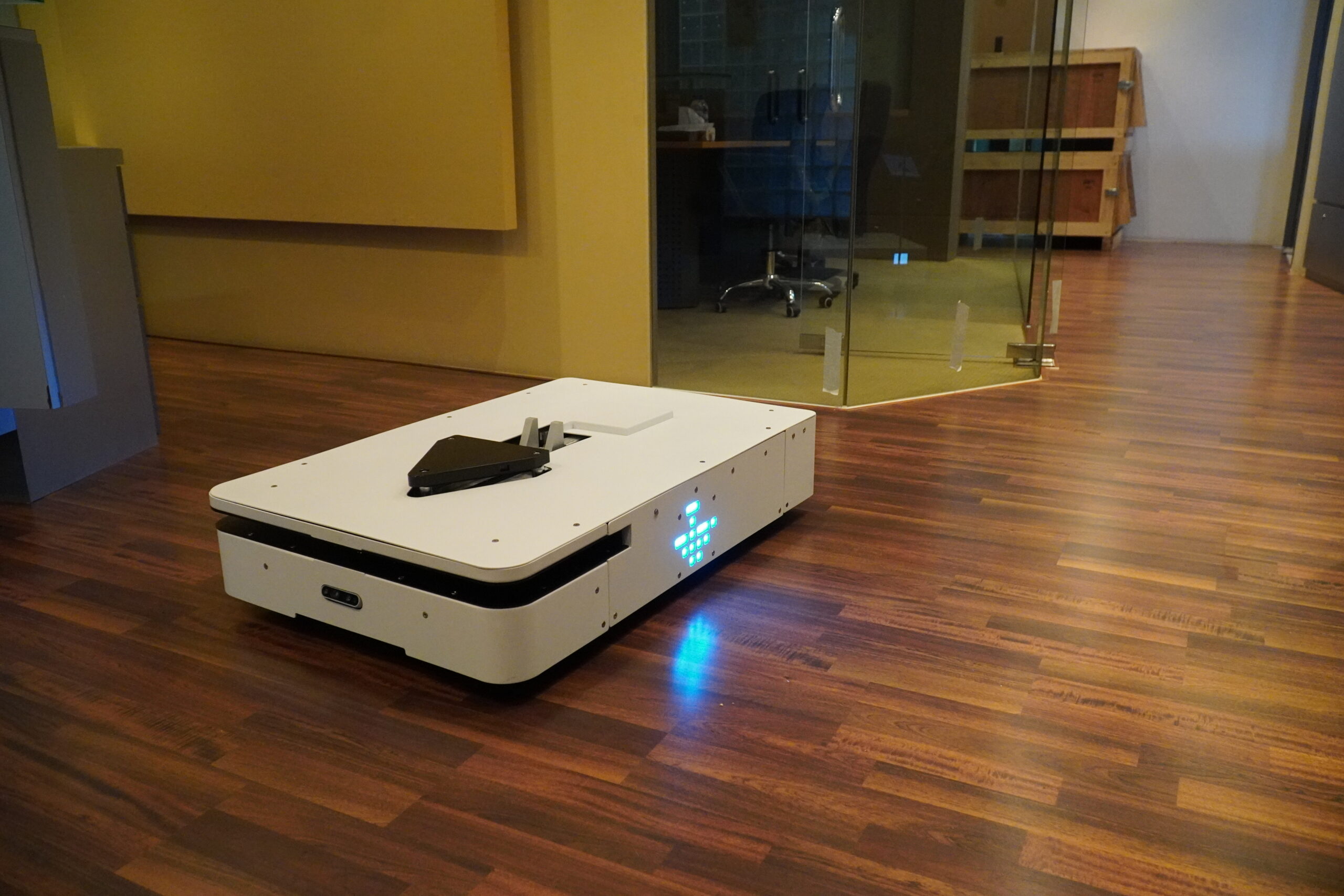

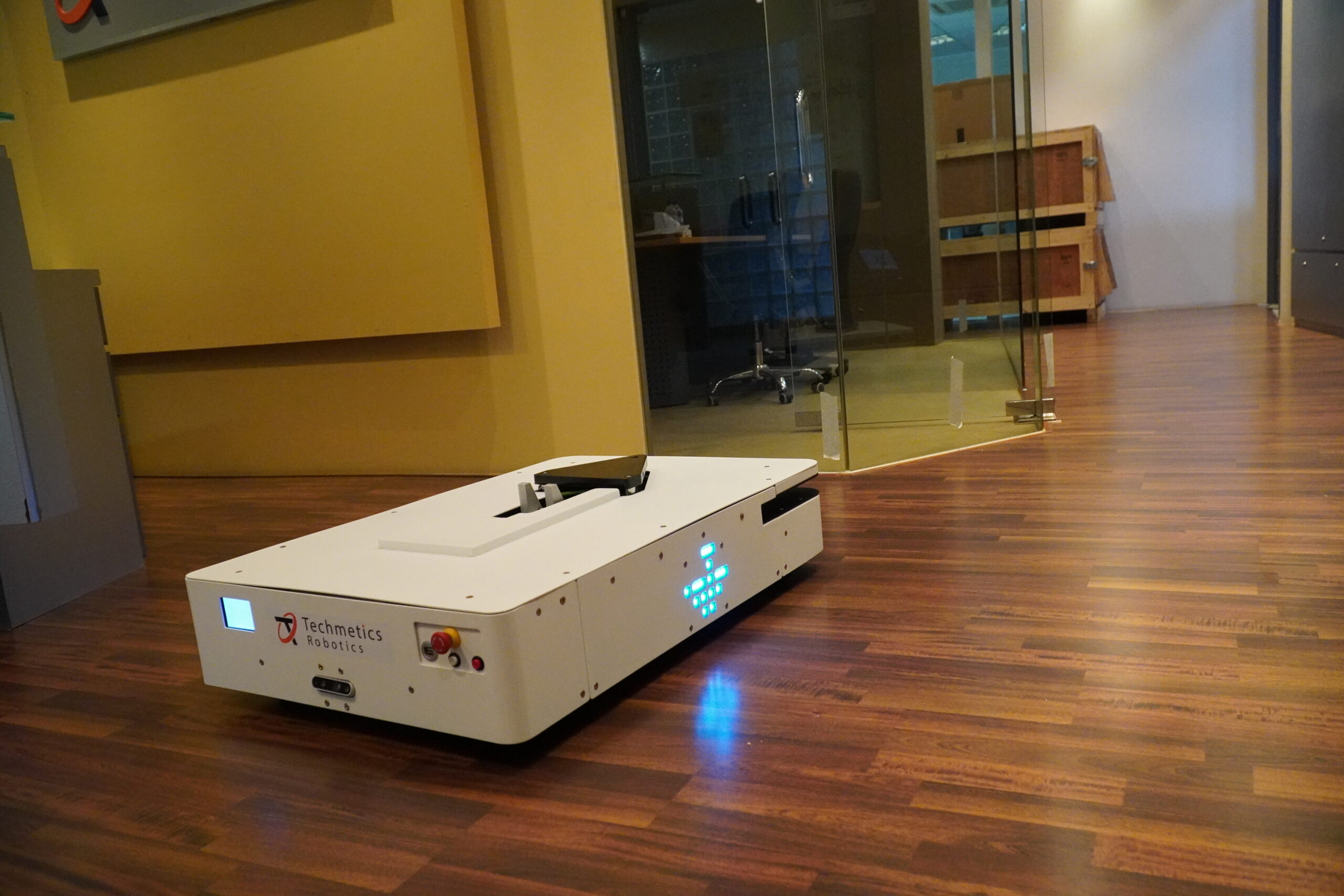

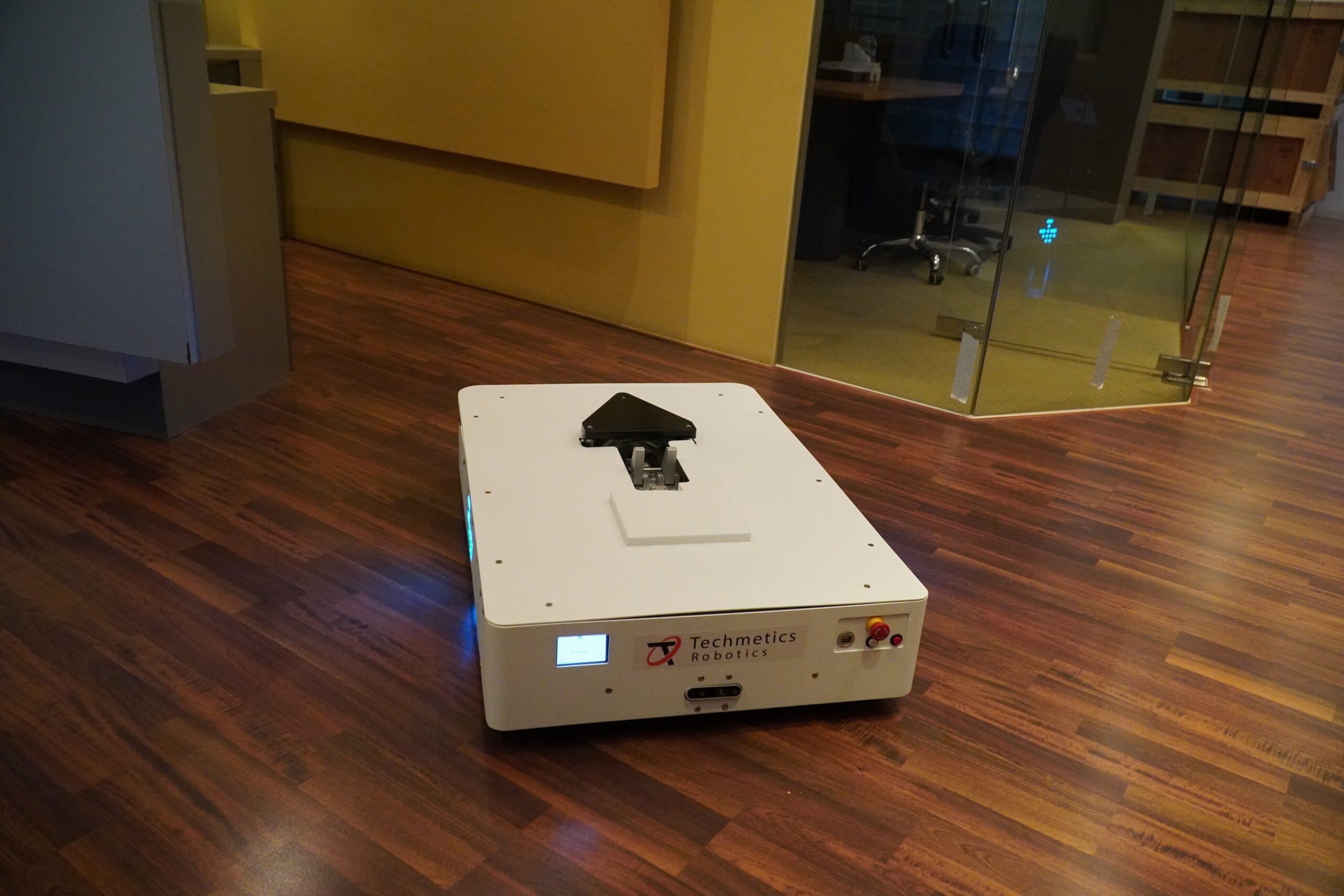

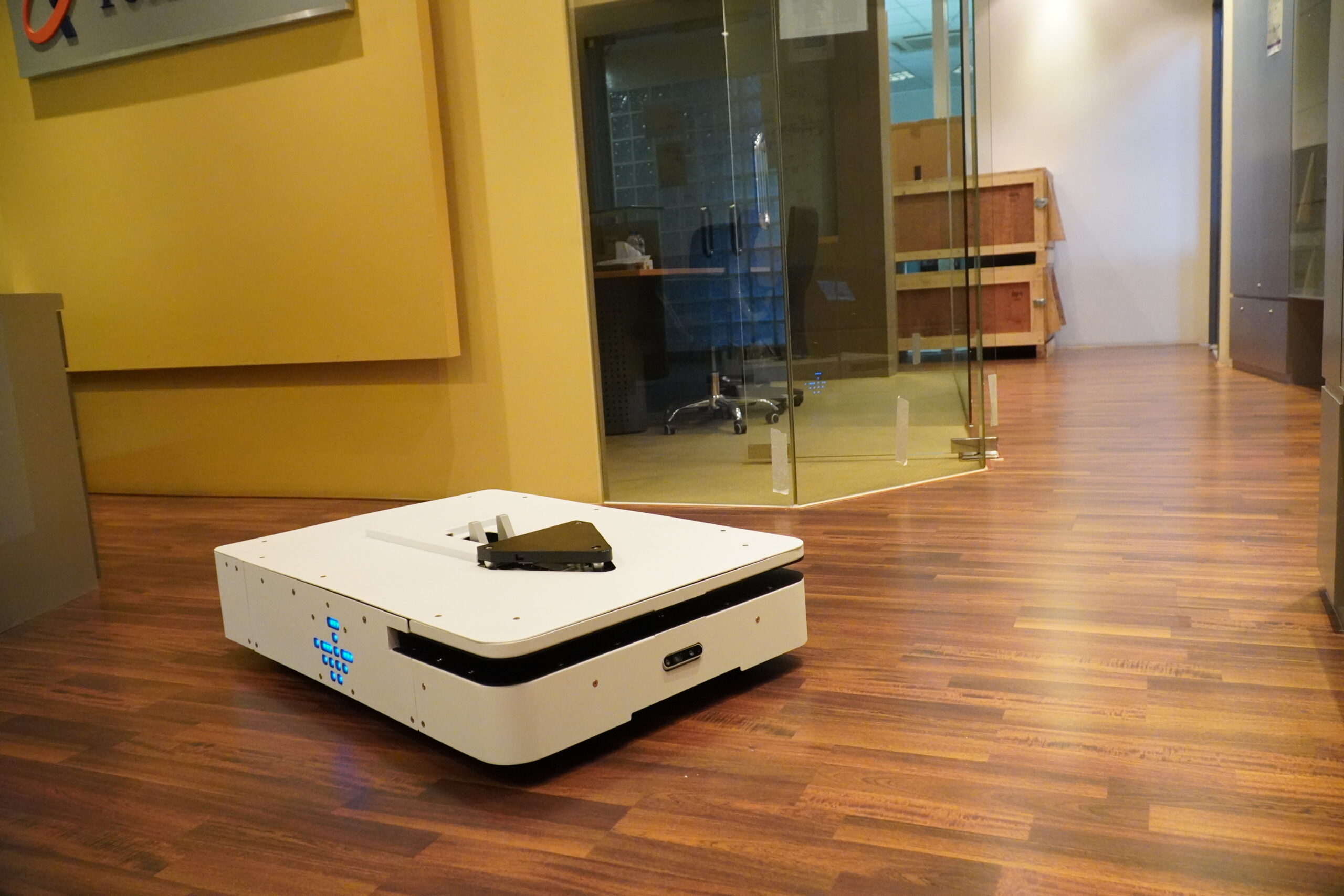

TRV Mega heavy transporter is capable of transporting upto 1000 lbs payload and comes with cart latching mechanism. TRV Mega is suitable for any indoor heavy payload applications i.e. Automotive, Logistics, Manufacturing industries material transportation applications.
Specifications
Material: Aluminum alloy chassis with AL casing
Dimensions: 37.8″ (L) x 25.6″ (W) x 11.8″ (H)
Payload: 1100 lbs (500 kgs)
Payload Attachment: Automatic latching mechanism (optional)
Maximum Speed: 1.0 m/s
Navigation: Autonomous routing by LIDAR SLAM Safety Scanning LIDAR : Class 1 Safety Rated Laser, PLd safety
Drive wheels: Differential Drives (BLDC low noise motors), 2 wheels
Battery: LiFePO4 20-28 VDC, nominal 25.6 VDC 15 hours continuous operation
Docking Station: 100 to 240 VAC, 50 to 60 HZ
Applications

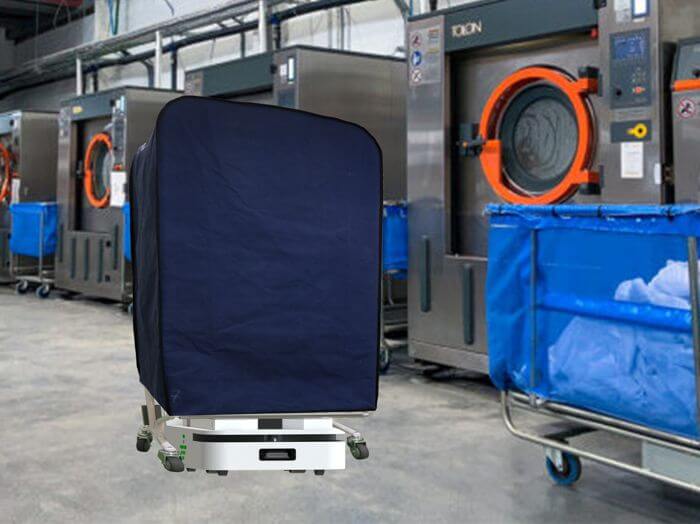

- Suitable for any indoor heavy material transportation applications in logistics, automotive and manufacturing industries
- Suitable for automatic cart pickup/dropoff applications
- Multi Story building delivery applications
- Configurable for system integrator applications
Why TRV Mega:
- Safety Certified Key Components used (i.e CE/UL Certified LIDARS, Motor Controllers)
- Premium, reputable key components used (Safety LIDARs, Motor, and Safety Controllers)
- Drives come with 20Nm Powerful Passive Brakes for enhanced safety
- 10 years of AMR product development experience incorporated into mobile navigation
- Our Premium Series houses a “Parallel Safety Monitoring and Controlling Unit” in addition to our Standard Series’ features, suitable for customers who prefer enhanced safety features
